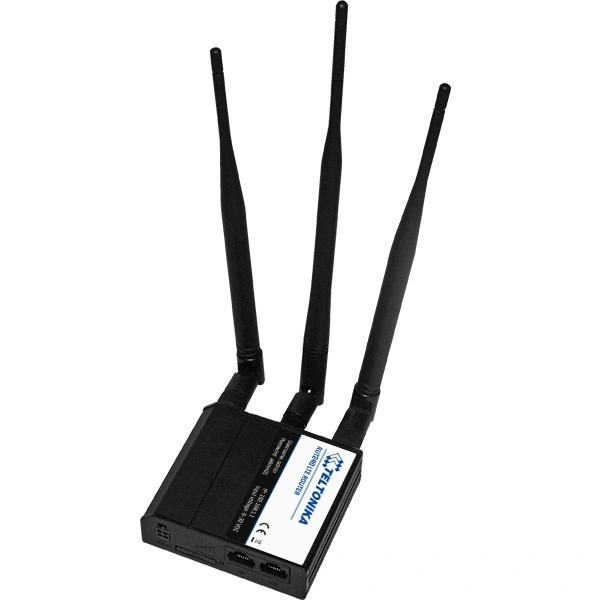

RUT240

LTE:

• LTE FDD: B1/B3/B5/B7/B8/B20
• LTE TDD: B38/B40/B41
• LTE CAT4 up to 70 Mbps DL
• Class 3 (23dBm±2dB) for LTE FDD
• Class 3 (23dBm±2dB) for LTE TDD

UMTS/DC-HSPA+:

• 850/900/2100 MHz
• DC-HSPA+ mode: Max 42Mbps (DL) Max 5.76Mbps (UL)
• UMTS mode: 384 kbps DL, 384 kbps UL
• TD-SCDMA: Max 4.2Mbps (DL) Max 2.2Mbps (UL)
• Power Class 3 (24dBm +1/-3dB) for UMTS bands
• Class 3 (24dBm+1/-3dB) for TD-SCDMA

GSM/GPRS/EDGE:

• 900/1800 Mhz
• GPRS/EDGE Multi-slot Class 12
• Power Class E2 (27dBm ±3dB) for EDGE 850/900
• Power Class E2 (26dBm +3/-4dB) for EDGE 1800/1900
• Power Class 4 (33dBm ±2dB) for GSM 850/900
• Power Class 1 (30dBm ±2dB) for GSM 1800/1900

ETHERNET:

• IEEE 802.3, IEEE 802.3u standards
• 1 x LAN 10/100Mbps Ethernet port
• 1 x WAN 10/100Mbps Ethernet port
• Supports auto MDI/MDIX

WIFI:

• IEEE 802.11b/g/n WiFi standards
• AP and STA modes
• 64/128-bit WEP, WPA, WPA2, WPA&WPA2 encryption methods
• 2.401-2.495GHz WiFi frequency range
• 20dBm max WiFi TX power
• SSID stealth mode and access control based on MAC address

• • TECHNOLOGY

  • 4G (LTE) – CAT 4 up to 70 Mbps

  • 3G – Up to 42 Mbps

  • 2G – Up to 236.8 kbps

  • WiFi – Up to 150 Mbps

  • GPRS

  • Ethernet – 2 ports

  • SMS


  • HARDWARE

  • Digital output – 1
  • DIN – digital input – 1

  • 1x SIM Card

  • 1x LAN 10/100Mbps Ethernet port

  • 1x WAN 10/100Mbps Ethernet ports

  • IEEE 802.11b/g/n WiFi standards

  • Durable aluminum housing

  • Power over Ethernet (not compliant with IEEE 802.3af - 2003)

  • Mobile antenna type – 2x SMA for LTE
  • WiFi antenna type – 1 x RP-SMA
  • Input voltage range – 9-30 VDC
  • Operating temperature range – -40°C to 75° C
  • Storage temperature range – -45ºC to 80º C
  • Power consumption – < 5W
  • Mounting options – DIN RailWall
  • LED indication – 3x connection status, 5x connection strength, 1x Power

  • FIRMWARE

  • Bridge mode

  • Static routes

  • NTP

  • Wireless Hotspot

  • Wireless Client

  • Wireless AP

  • Ping reboot

  • Periodic reboot

  • Real-time graphs

  • Backup WAN

  • Mobile Traffic counter

  • Connection status overview bar

  • Configuration backup/restore

  • VRRP

  • GRE Tunnel

  • PPTP

  • SNMP

  • SNMP Trap

  • Send/receive SMS

  • Status via SMS

  • SMS reboot

  • Mobile enable/disable via SMS

  • Wireless enable/disable via SMS

  • Web Filter

  • Mobile on Demand

  • Mobile Data Limit

  • Configuration Profiles

  • Event logging

  • QoS

  • Call Utilities

  • FOTA (Firmware Over The Air)

  • Disable Roaming

  • SMS gateway

  • Access control safety

  • VLAN

  • CLI

  • Firewall

  • IP/MAC filter

  • DHCP server

  • Dynamic DNS

  • RMS support
