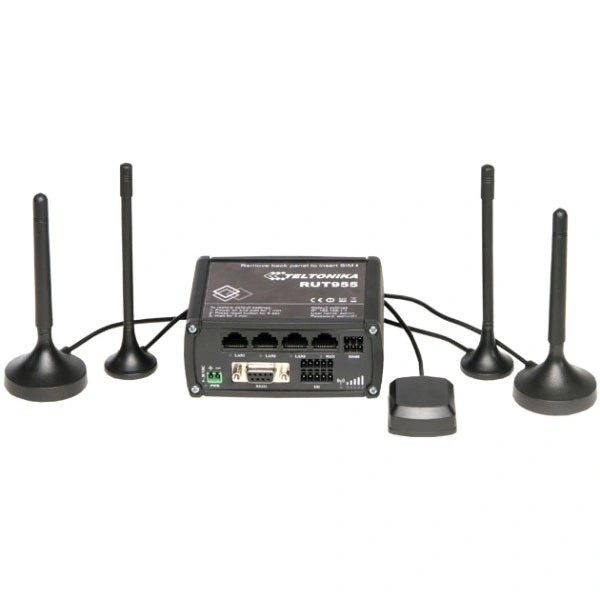

outer celular industrial 4G (LTE), cu VPN, cu 2 SIM-uri, cu port RS-232/485, cu 4 porturi Ethernet 10/100Mbps si WiFi IEEE 802.11 b/g/n
Technology
Hardware
Firmware
| LTE |
| Frecvente: FDD 800(B20)/850(B5)/900(B8)/1800(B3)/1900(B2)/2100(B1)/2600(B7) MHz |
| Pana la 100 Mbps downlink |
| Pana la 50 Mbps uplink |
UMTS/HSDPA/HSUPA |
| Frecvente: 850/900/AWS1700/1900/2100 MHz |
| HSDPA: 21 Mbps (Cat 14) downlink |
| HSUPA: 5.76 Mbps (Cat 6) uplink |
| UMTS: 384 Kbps downlink si uplink |
GSM/GPRS/EDGE |
| Frecvente: 850/900/1800/1900 MHz |
| Power class 4 (2 W, 33 dBm) GSM/GPRS 850/900 MHz |
| Power class 1 (1 W, 30 dBm) GSM/GPRS 1800/1900 MHz |
| Power class E2 (0.5 W, 27 dBm) EDGE 850/900 MHz |
| Power class E2 (0.4 W, 26 dBm) EDGE 1800/1900 MHz |
| GSM: 14.4 kbps DL, 14.4 kbps UL |
| GPRS: 107 kbps DL, 85.6 kbps UL (class 33) |
| EDGE: 296 kbps DL, 236.8 kbps UL (class 33) |
Ethernet |
| Standarde: IEEE 802.3, IEEE 802.3u |
| Porturi: 3 x LAN 10/100 Mbps, 1 x WAN 10/100 Mbps |
| Suporta auto MDI/MDIX |
WiFi |
| Standarde: IEEE 802.11b/g/n |
| 2x2 MIMO |
| Moduri de functionare: AP si STA simultan |
| Securitate: 64/128-bit WEP, WPA, WPA2, WPA&WPA2 |
| Frecvente: 2.401 – 2.495 GHz |
| Putere: 20 dBm max TX |
| SSID stealth mode si control al accesului pe baza adresei MAC |
Hardware |
| CPU 560 MHz cu memorie DDR2 128 Mbytes |
| Alimentare cu conector jack sau bloc terminal cu 2 pini (optional) |
| Adaptor atasabil pentru montare pe sina DIN (optional) |
| Bloc terminal cu 4 pini pentru portul RS-485 (2 sau 4 fire) |
| Mufa DB9 pentru portul RS-232 |
| Port USB 2.0 |
| Buton Reset/Restore to default |
| Conectori pentru antene: 2 x SMA pentru 3G, 2 x RP-SMA pentru WiFi |
| LED-uri: 4 x Ethernet , 1 x Power , 1 x status conexiune , 5 x putere conexiune |
| Bloc terminal cu 10 pini pentru iesiri / intrari: |
| 0 - 3 V intrare digitala |
| 0 - 30 V intrare digitala izolata galvanic |
| 0 - 24 V intrare analogica |
| 30 V, 250 mA iesire digitala open collector |
| 40 V, 4A iesire pe releu SPST |
Software |
| OpenVPN, IPsec, GRE, L2TP, PPTP |
| Backup WAN |
| PPPoE |
| Dynamic DNS |
| SMS si ping reboot, periodic reboot |
| Status, configuration via SMS |
| Send/read SMS via HTTP POST/GET |
| Monitorizare prin SNMP, SNMP trap |
| System log |
| VRRP |
| Web filter |
| Wireless hotspot cu sau fara server RADIUS |
| SIM card switch controlled by signal, data limit, roaming |
| RS232/485 serial console |
| RS232/485 over IP |
| Triggere de intrare pentru SMS, e-mail, SIM card, profile, WiFi, reboot, output |
| Configuration profiles |
| Dual image with safemode firmware |
| Firmware update from bootloader via WebUI |
| Restore point |
Caracteristici Electrice, Mecanice si de Mediu |
| Dimensiuni (H x W x D): 80 mm x 106 mm x 46 mm |
| Greutate: 280 g |
| Alimentare: 9 – 30 VDC |
| Consum: maxim 7 W |
| Temperatura de functionare: -40 °C to 75 °C |
| Temperatura de depozitare: -45 °C to 80 °C |
| Umiditate functionare: 10 % to 90 % non-condensing |
| Umiditate depozitare: 5 % to 95 % non-condensing |
